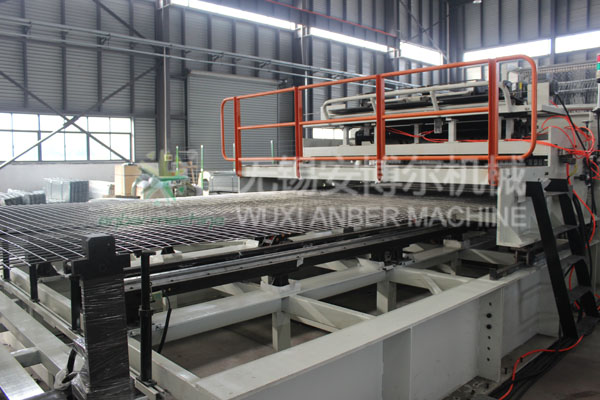

Automatic Wire Mesh Welding machine

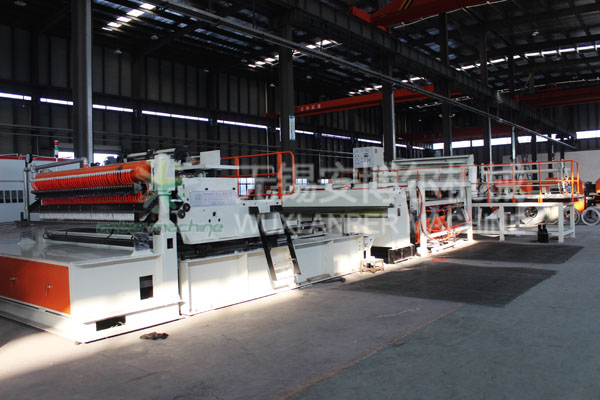

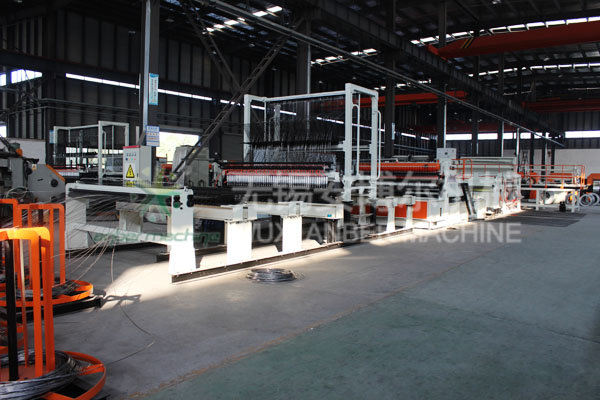

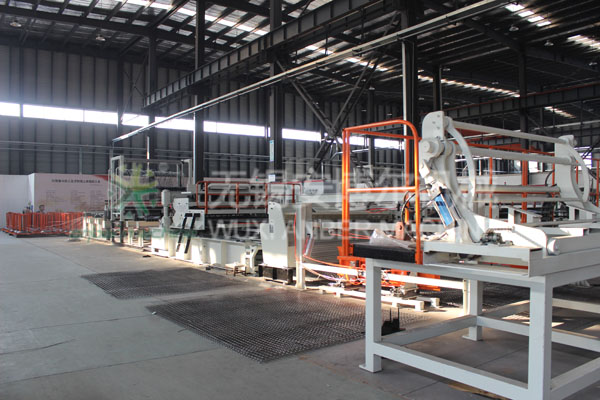

Full automatic welded mesh machine line

Automatic welded mesh machine

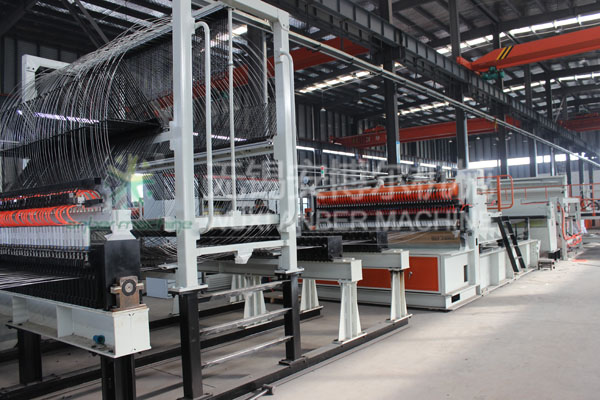

Full automatic wire mesh welded machine

Full automatic welded mesh machine

01. DESCRIPTION

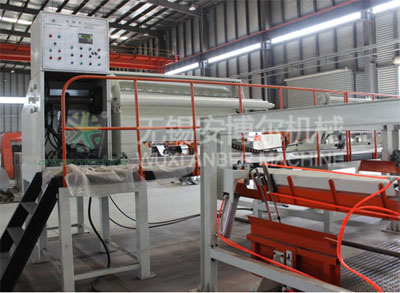

Both line wire coils and cross wire coils for the auto mesh welding machine are automatically straighten, cut and fed. The finished mesh is also automatically recoiled and cut. Line wires are automatically straightening, storage and feeding. Cross wires are automatically straightening, storage and feeding in the production line. Compared with ordinary reinforcing mesh welding equipment, both line wires and cross wires are fed with coils. Automatically feeding, recoil and cut and discharge the welded mesh roll which maximized save labor and greatly increased production.

No	Item		Specifications	Remark
1	Model		ABE-HLW-2500
2	Mesh width		2400mm
3	Wire diameter		φ2.5 ~4mm	Mesh coiling diameter≤φ4.5
4	Line wire spacing		50mm	Manual adjustment
5	Cross wire spacing		50mm	Touth scteen adjustment
6	Feeding method	Line wire	coil
7	Feeding method	Cross wire	Pre-cut,fixed length feeding	≥2400mm（Length)
8	Number of welding heads		51
9	Welding speed		55~70 Strokes/min
10	Welding pressure		2510 ~ 4020N stepless adjustable
11	Supply voltage / frequency		380V/50HZ
12	Equipment motor power			See schedule 1
13	Required power transformer		≥1950kVA
14	Total equipment size (approx.)		45m(L) ×8.6m(W) ×3.2m(H)
15	Total equipment weight (approx.)		25.36t

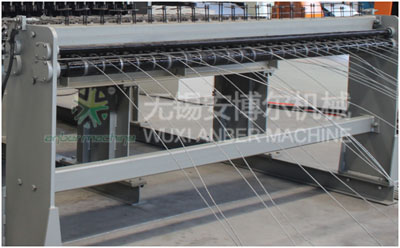

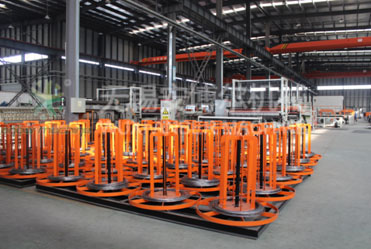

(2.1).Line wire feeding system
Occupy area: 2.76 m×0.37m, height: 1.06m, weight: 400kg
The line wire get through into the first straightening system, there is line wire broken detective here will stop the machine if the wire is broken, and machine can start work again after the machine start manually again.

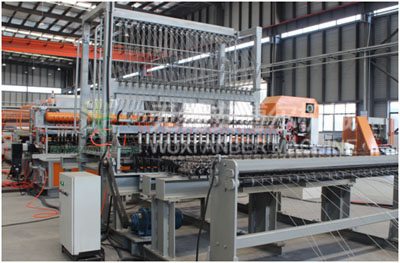

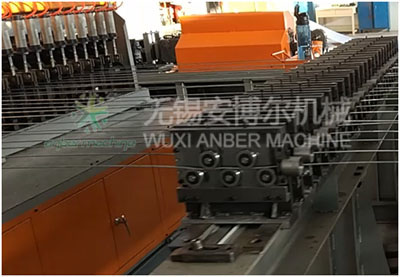

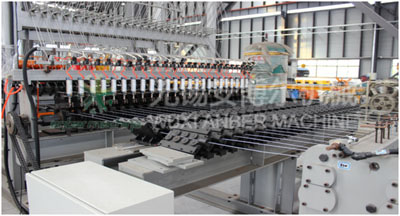

(2.2).Line wire straightening (before accumulator)
The line wire straightening is composed of oblique straightening before storage and straightening after storage, and is used for straightening after line wire laying.

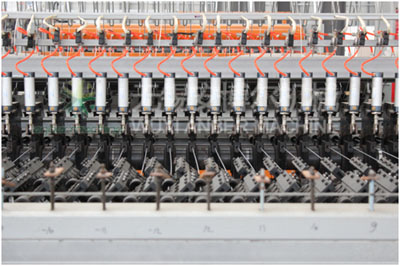

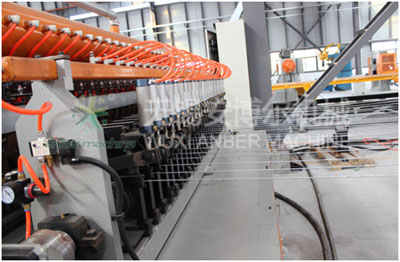

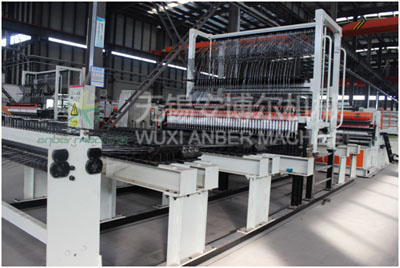

(2.3).Line wire feeding to accumulator
Occupy area: 3.01 m×0.44m, height: 1.33m, weight: 850kg
Supply power to each line wire straightening and feeding and finally send the straightened wire into the accumulator. Pneumatic control.

(3).Welding mesh machine
Occupy area: 3.5m×1.2 m, height is 2.5m, designed weight is 6720kg
Wire space: 100*100mm, 150*150mm, 200*200mm.

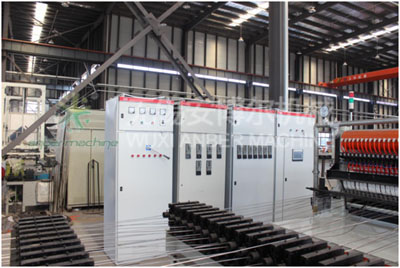

Wire mesh welder with step less adjustable cross and line wire pitch, the line wire space is adjusted by hand; the cross wire space is adjusted by the electrical controlling cabinet.
The welding system is designed for smooth and ribbed wire

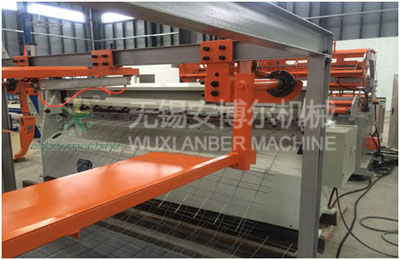

(4).Mesh cutting machine
Occupy area: 2.8m×1m, height is 1.6m, designed weight is 2750kg
Cut off the welded mesh into mesh panel
Cut width: 2400mm Power: 5.5kw

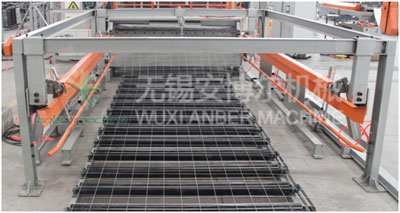

(6).Mesh stacking (Mesh blanking and convey equipment)
The main function of the automatic mesh stacking is to support the webs in the conveyance after the welding is completed, and the blanks that have been cut to a fixed length are superimposed, and after reaching a certain height, they are transported out by themselves. Suitable for meshes with a width of 2500mm and a length of 3040mm.
Occupy space: 5.5m×3m, height 1.63m, weight 960kg, packing height: 500-600mm
Auto collect the welded mesh
There is limit sensor to control the motor stop and start.
