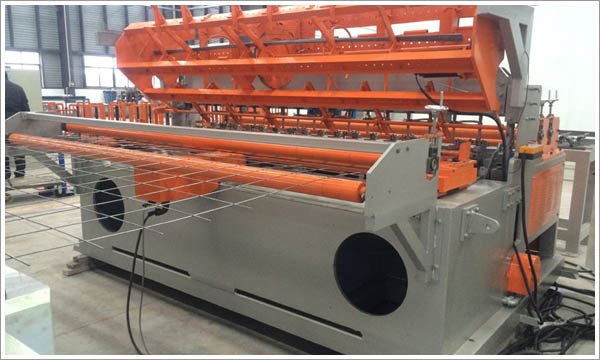

Welded mesh production line

factoryshow

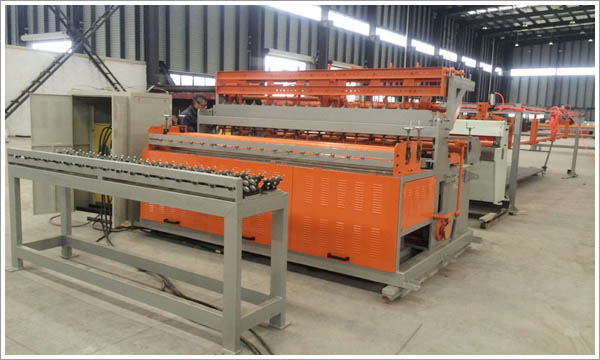

Coil in pcs out mesh welding line

factoryshow

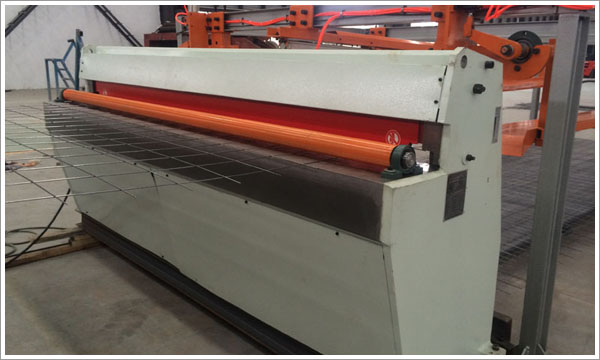

Mesh cutting machine

factoryshow

Mesh collecting table

factoryshow

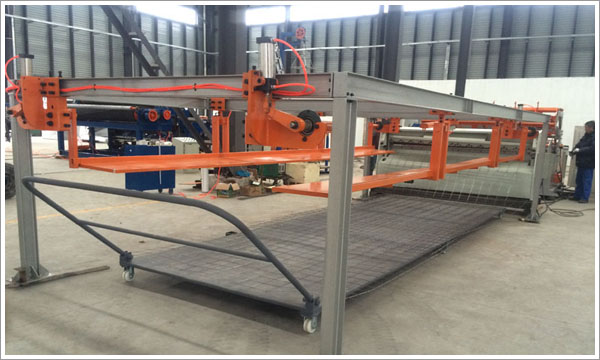

Line straightening table

  • 01. DESCRIPTION
  • the mesh welding line is especially for the production line that line wire is from spool and cross wire from pre-straighten and cut bar. Line wire feed from coil, cross wire is pre-cut and then feed in the cross wire feeding system, the cross wire feeding system will fed the wire into the welding system automatically and even, and the cross wire space is controlled by computer which is more accurate and easier, the mesh edge is aligned and no need to cut any more, the welded mesh is normally recoiled by the coiling machine. Welded wire mesh machine is a kind of auto welding equipment designed and manufactured by ourselves based on absorbing the advanced electric-mechanical controlled resistance welding technology from home and abroad, of which multi-nomial technologies have won the national patents.
  • 02. ADVANTAGE
  • 1. Main machine frame is welded with the thicker steel panel and steel bar. The main structure is more well-set and compact.
    2. The cross wire feeding hopper is originative. The cross wire feeding is automatic and driven by step motor, which makes the cross wire aligning more accurate.
    3. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.
    4. The mesh aperture size welded is diversified. The line wire spacing can be adjusted through the related parts. The cross wire spacing adjusting is controlled by microcomputer and it can have 10 different styles.
    5. Welding adopts late-model efficient welding transformer. The voltage adjusting range is big and it can fall into eight different grades, which enlarge the range of wire diameter size.
    6. In order to adapt the capacity of the clients’ main power transformer and reduce the rush of the current, electric and electronic welding control adopt the separating control electricity input, i.e., the welding transformers don’t work at the same time but in several times when welding the same row of cross wires.
    7. Electric and electronic welding control system adopts synchronous control technology. The welding time and separating control welding is composed of numeric integrated circuit, which is with high control precision and stable function.
    The machine can be used to produce the mesh for guard rail of road, railway, hills, fencing, mesh for casting of building roofs, etc.
  • 03. PARAMETER
    • Model ABE-3/5-1200D ABE-5/5-1600D ABE-3/5-2100D ABE-3/5-2500D
    Line wire 3-5mm, Coil
    Cross wire 3-5mm, Pre-cut
    Mesh width 1200mm 1600mm 2100mm 2500mm
    Line wire spacing 5mm-100mm
    Cross wire spacing 5mm-200mm, Endless adjustable
    Welding electrode 24 32 40 48
    Transformer 400KVA 500KVA 630KVA 800KVA
    Wire diameter 3mm-5mm
    Max welding capacity 5.0+5.0mm with standard quality
    Max welding speed 30-40 cross wires / minute
    Mesh pulling way Numerical control
    Cable 3x95mm² copper cable or 120mm² aluminum cable, the distance from the machine to the transformer should be less than 30m.
    Welding way Resistance welding controlled by Silicon-controlled rectifier
    Welding voltage Adjustable in eight different grades through welding transformer
    Pressurizing way By changing the length of tie rod in pressurizing beam and the compression of the upper electrode spring
    Cross wire feeding way The cross wire fall off the feeding hopper into welding automatically one by one driven by step motor

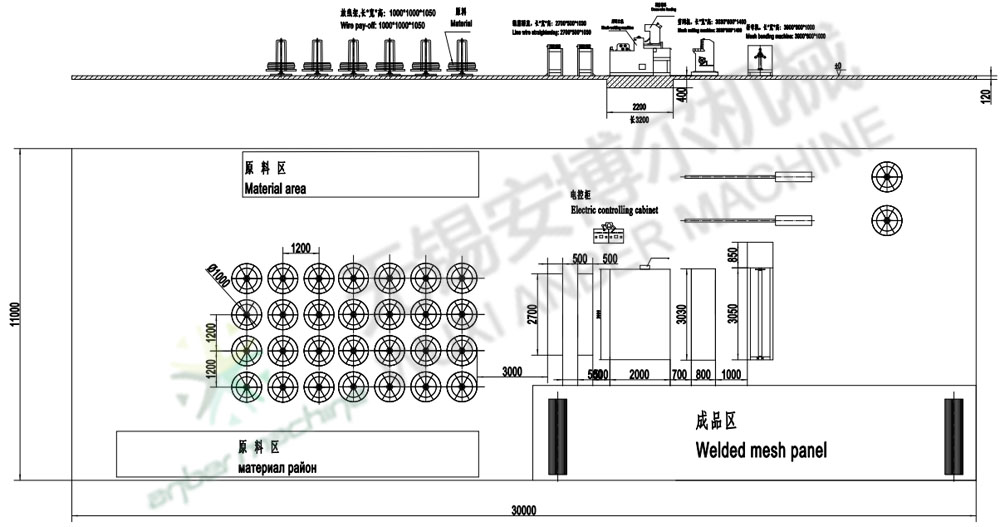

  • 04. LAYOUT
