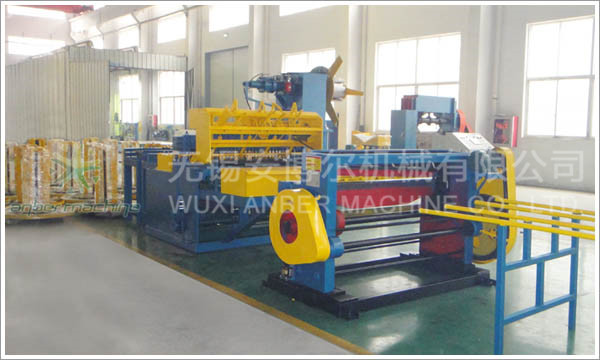

• ABE-2/4-1250 MESH WELDING LINE
  • Home >Our products
factoryshow

coil in pcs out mesh welding line

factoryshow

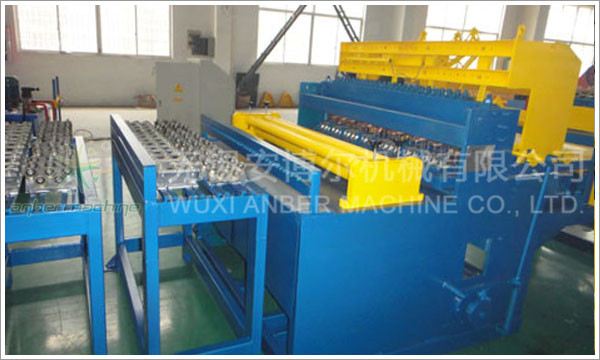

Auto Control Fencing Mesh Welding Machine

factoryshow

wire mesh fencing machine

factoryshow

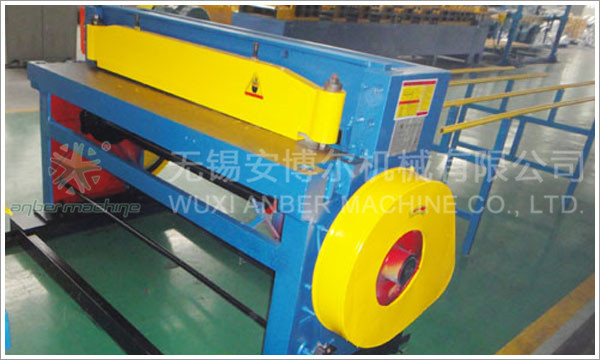

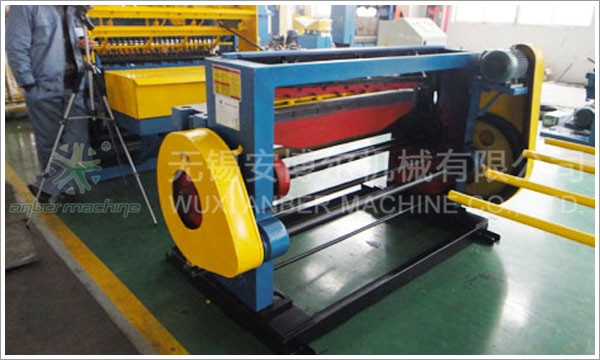

Mesh cutting machine

factoryshow

Mesh cutting machine

  • 01. DESCRIPTION
  • the mesh welding line is especially for the production line that line wire is from spool and cross wire from pre-straightened and cut bar.
    Welded wire mesh machine is a kind of auto welding equipment designed and manufactured by ourselves based on absorbing the advanced electromechanical controlled resistance welding technology from home and abroad, of which multinomial technologies have won the national patents.
  • 02. FEATURES
  • 1. Main machine frame is welded with the thicker steel panel and steel bar. The main structure is more well-set and compact.
    2. The cross wire feeding hopper is originative. The cross wire feeding is automatic and driven by step motor, which makes the cross wire aligning more accurate.
    3. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.
    4. The mesh aperture size welded is diversified. The line wire spacing can be adjusted through the related parts. The cross wire spacing adjusting is controlled by microcomputer and it can have 10 different styles.
    5. Welding adopts late-model efficient welding transformer. The voltage adjusting range is big and it can fall into eight different grades, which enlarge the range of wire diameter size.
    6. In order to adapt the capacity of the clients’ main power transformer and reduce the rush of the current, electric and electronic welding control adopt the separating control electricity input, i.e., the welding transformers don’t work at the same time but in several times when welding the same row of cross wires.
  • 03. PARAMETER
  • Mesh width: 1250mm
    Line wire spacing: 50-100mm
    Numbers of welding points: 30
    Transformer: 3x125KVA
    Cross wire spacing: 50-200mm
    Wire diameter: 2-4mm
    Max welding speed: 30-40 strokes/min
    Driving Power: 2.2Kw
    Outside transformer capacity: ≥100KVA2 Outside cable requirement: three 50 m copper wires (Equipment is distant from 2 electric transformer≤100 m); One 20 m aluminum wire (used as zero line)
    Welding way: Resistance welding controlled by Silicon-controlled rectifier (hereinafter called as SCR)
    Welding voltage: adjustable in eight different grades through welding transformer
    Pressurizing way: by changing the length of tie rod in pressurizing beam and the compression of the upper electrode spring
    Cross wire feeding way: the cross wire fall off the feeding hopper into welding automatically one by one driven by step motor
  • 04. MATERIAL REQUIREMENT
  • Coiled bar dragged annealing material shall meet the related requirements of carbon structural steel Q195F Carbon Equivalence of China GB/T701—1997, and the tensile strength shall be above or equal to 392N/mm².
    Surface shall be smooth and rustless, without lime removing agent, fume dirt, water stain, zinc stain (cold or hot galvanization) or altered drawing wire.

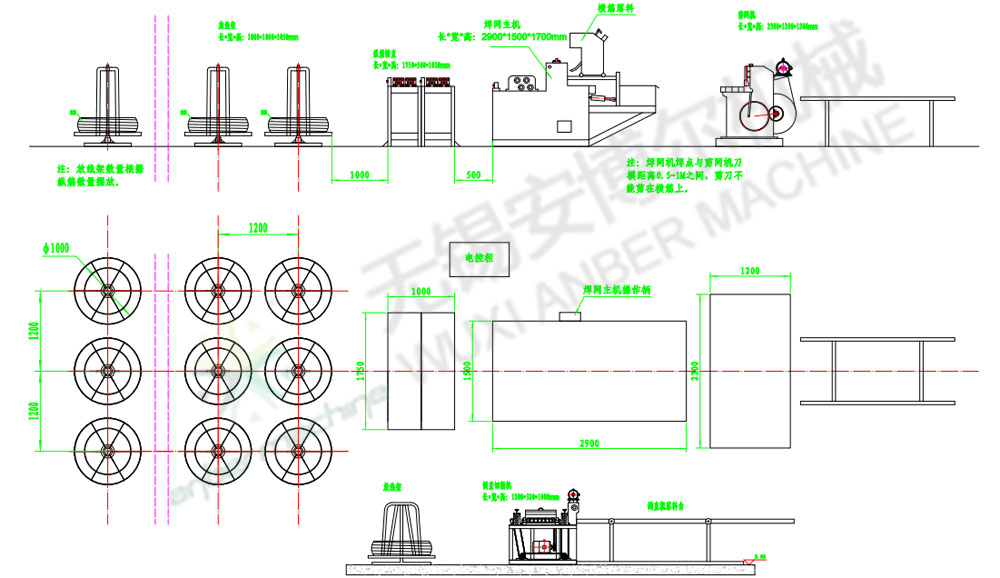

  • 05. LAYOUT
